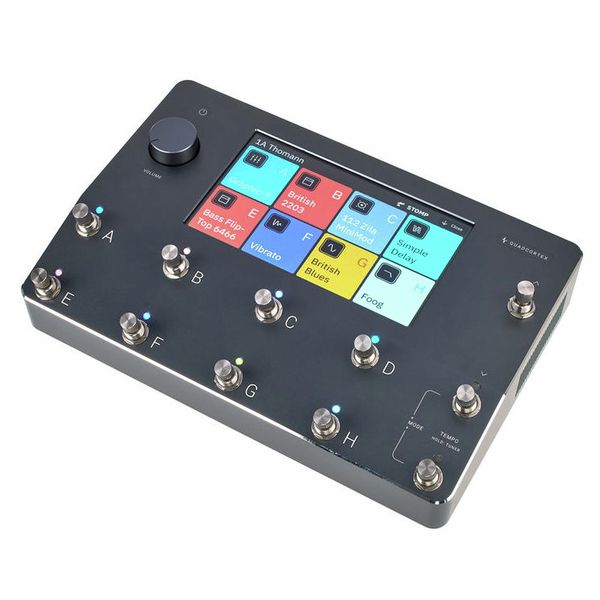

NEURAL DSP QUAD CORTEX

• Lightweight, sturdy, and portable
• Quad-Core 1.8GHz DSP system powered by 2 SHARC+ cores and 2 ARM Cortex A57 cores
• Captures the essence of your favourite gear with unprecedented accuracy
• Offers users an infinite range of tones with an extensive modelling library

Unleash the Power

At the heart of the Quad Cortex lies its Quad-Core 1.8GHz DSP system. This powerhouse allows for the complex computations needed to accurately model amps and effects, ensuring an authentic tone that is virtually indistinguishable from the real thing.

Compact and Durable

Don’t let its small size fool you; the Quad Cortex is built to withstand the rigors of the road. Its compact, featherlight design doesn’t compromise on durability, making it the perfect companion for gigging musicians.

Accuracy Like No Other

With its advanced machine learning technology, the Quad Cortex captures the essence of your favourite gear with unprecedented accuracy. Every nuance is meticulously modeled for an authentic playing experience.

Infinite Customisation

The extensive library of effects, amps, cabs, and microphones provided by the Quad Cortex offers endless possibilities for tone customisation. With such a vast array of options, you can create the perfect tone for any musical genre.

FAQs

What does the neural DSP quad cortex do?

The Neural DSP Quad Cortex captures the tone and feel of any amp or effect, providing musicians with unparalleled sound flexibility and quality. It is a cutting-edge digital effects processor and amp modeller, widely regarded as one of the leading floor-modellers available.

Can you use Neural DSP plugins with Quad Cortex?

Currently, you cannot use Neural DSP plugins with Quad Cortex. However, that feature is coming soon! Once it is launched, you’ll be able to connect your iLok account to your Quad Cortex and load the highly sought-after plugin-exclusive blocks.

Can the Quad Cortex be used as an interface?

The Quad Cortex can serve as an audio interface. Its USB connectivity facilitates direct recording to your digital audio workstation, providing high-quality sound and seamless integration into any home or professional studio setup.

Specifications

Mic/Inst Inputs 1-2

• Connectors: (2) XLR-F + ¼” TS with Ground Lift
• TS Impedance: 10KΩ – 10MΩ
• XLR Impedance: 9.4K Ω
• Max Input Gain: +60 dB

Send Outputs 1-2

• Connectors: (2) ¼” TRS with Ground Lift
• Impedance: 1M Ω
• Max Input Gain: +60 dB

Return Inputs 1-2

• Connectors: (2) XLR-M with Ground Lift
• Impedance: 560 Ω
• Max Output Level: +9.5dBu

Analog Outputs 1-2

• Connectors: (2) TRS
• Impedance: 560 Ω
• Max Output Level: +15.5dBu balanced, +9.5dBu unbalanced

Analog Outputs 3-4

• Connectors: (2) ¼” TRS (Ground-cancelling outputs)
• Impedance: 560 Ω
• Maximum Output Level: +9.5dBu

Headphone Output

• Connectors: ¼” TRS
• Output Power (max): 300mW

USB Audio General

• Format: USB Audio Class 2.0 Compliant
• Channels: 16 (8in/8out, each mapped to a specific source or connector)
• USB Audio Clock: 48 kHz fixed

Environmental

• Finish: Anodized aluminum unibody
• Controls: 11 stainless steel stomp + rotary actuators, 1 volume knob
• Display: 7” high brightness
• Dimensions: 29 x 19 x 4.9cm
• Weight: 1.95kg / 4.2lbs
• Input Voltage: 12VDC 3A (negative polarity)
• Typical Power Consumption: 18W
